THEODOLITE SURVEYING LESSON 6

THEODOLITE LESSON 6
VERTICAL ANGLE
         When two lines are meeting in a vertical plane, the angle between them is called “vertical angle”
         These angles are measured with the help of vertical (plate)  circle and corresponding verniers “C” and “D”
VERTICAL ANGLES

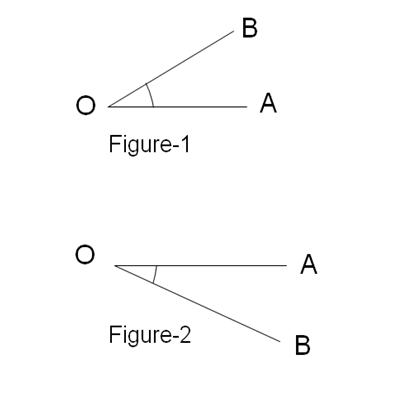

         Angle of elevation( Figure-1 )
         Angle of depression ( Figure- 2 )


MEASUREMENT OF VERTICAL ANGLES
Let
         “O” is instrument station
         “PQ” is the object, say a ranging rod ( Figure-3)


         Set up theodolite over station “O” and complete the temporary adjustments accurately with the help of altitude bubble tube
         Bring index of verniers “C” and “D” to zero degrees
         Release upper plate (vertical plate) clamp screw and sight to  object “Q” and clamp it firmly.
         Bisect the object “Q” accurately with help of  corresponding slow motion screw
         Read main scales and corresponding vernier scales “C”  and “D”. This angle is called angle of elevation
         Release the upper plate (vertical cirlce) clamp screw and sight to object “P” and clamp it
         Bisect the object “P” accurately with help of corresponding slow motion screw
         Read main scales and corresponding vernier scales “C” and “D”. This angle is called angle of depression.
         Enter the readings in the proforma
          Add average of two readings. This reading is the required vertical angle “POQ”
         Change the face of the instrument and repeat the  process  as explained above
         Add average of two readings. This reading is  the required  angle “POQ”
         Take average of face left and face right to get further accurate angle  “POQ”

SETTING OUT ANGLE USING THEODOLITE
         This method is adopted for transferring the angels on to the ground to establish the required stations or points

Example: Set the angle 30 degrees, 45 minutes and 20 seconds
STEPS:
         Set the theodolite on the required point from which the given station or point is to be set
         Complete the temporary adjustments
         Bring the verniers “A” to zero and clamp the lower clamp screw firmly
         Loosen the upper clamp screw and bring the upper plate and verniers to angle 30 degrees, 45 minutes and 20 seconds accurately with the help of corresponding   tangent screw
         Clamp the upper plate firmly
         Place the desired point in the direction with the help of telescope and ranging rod.
